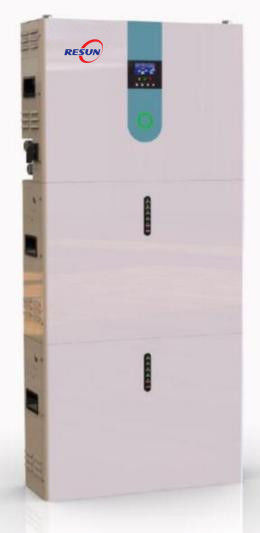

5.5KW Household Inverter - 10KWh Battery Safety All - in - One Unit

Name: 5.5KW Household Inverter - 10KWh Battery Safety All - in - One Unit
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: AL-5.5K-10KWh
Availability: InStock

Produktdetails:

Place of Origin:	China
Markenname:	RESUN
Zertifizierung:	-
Model Number:	AL-5.5K-10KWh

Einzelheiten

Place of Origin:

China

Markenname:

RESUN

Zertifizierung:

Model Number:

AL-5.5K-10KWh

Model:

AL-5.5K-10KWh

Inverter:

5.5KW

Battery capacity:

10.24KWh

Rated Voltage:

51.2V

Capacity:

200Ah

Battery Type:

3.2V 100A H (16 S 1 P )

Design Life:

More than 6 years

Operating Temperature:

Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C

Dimensions:

610*225*1318mm

Weight:

About 150 kg

Protocol (Optional):

Modbus/RS485/CAN

Handelsinformationen

Minimum Order Quantity:

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Beschreibung des Produkts

5.5KW Household Inverter - 5KWh Battery Safety All - in - One Unit

• 5.5KW inverter+10KWh battery safety integrated, strong capacity stable power supply
• The all-in-one machine integrates multiple protections, ensuring the safety of the entire process of power storage and inversion
• Wall mounted to save space, suitable for household peak and valley electricity consumption and emergency backup power

FEATURES

• Large capacity and efficient power storage: With a rated capacity of 200Ah and a stable voltage of 51.2V, it can efficiently store electrical energy to meet the continuous electricity needs of households or small commercial scenarios, laying a solid foundation for equipment endurance and emergency power supply.
• Flexible adaptation scenarios: weighing approximately 93 kilograms, with dimensions of 550, 223, and 1750 millimeters, combined with wall mounted (presumably adaptable to space installation) design, suitable for various scenarios such as homes and small businesses, easily integrating into different electrical environments, saving space and facilitating deployment.
• Stable operation in a wide temperature range: charging temperature of 0~+55 ° C, discharging temperature of -20~+60 ° C, storage temperature of -20~+60 ° C, can work stably in a wide temperature range, not afraid of complex environments such as high temperature and cold, ensuring continuity of power supply.

Description

Parameter	Details
Model	AL-5.5K-10KWh
Rated Capacity	200Ah (10KWH)
Rated Voltage	51.2V
Discharge Cut - off Voltage	40V
Charge Limiting Voltage	58.4V
Maximum Continuous Discharge Current	100A
Maximum Charge Current	100A
Weight	About 150 kg
Inverter	5.5KW
Dimensions (WDH) in millimeters	*6102251318*
Battery Type	3.2V 100AH (16S1P)
Design Life	More than 6 years
Cycle Life	Over 3000 cycles at 80% DOD
Protocol (Optional)	Modbus/RS485/CAN
Operating Temperature	Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C
